TT · liner
Nord° Liner 2.1 NF-34
A 3 mm TT cushion liner that retrofits one of the most common standard profiles on the market.
Overview
What this product is for.
Transtibial users across activity levels, where a familiar 3 mm cushion profile is already working or is the clinical starting point.
TT cushion 3 mm
Benefits
Designed to.
- Conform to the limb without adding unnecessary restriction
- Keep knee flexion light through sitting, standing up and stairs
- Make donning and doffing predictable
Why the details matter here
Profile thickness, textile behaviour and the NF-34 formulation decide how the liner behaves at end range of motion, not the material family name.
Technical data
Specification.
- Nord° Formula
- NF-34 custom blend TPE
- Intended for
- All types of activities
- Length
- ≈ 40 cm
- Colour
- Dark grey
- Weight
- Size 28 ≈ 485 gram
- Products
- Produced in Spain
- Nord° Formula production
- Produced in Sweden
- Textile
- +94% recycled polyamide / elastane. Produced in Portugal, yarn sourced in the EU
- Packaging
- 85% recycled paper. Produced in Sweden
- CO2 emission
- Size 26.5 = 2.43 kg CO2 eq. LCA following ISO 14040/44
Sizing
Size selection.

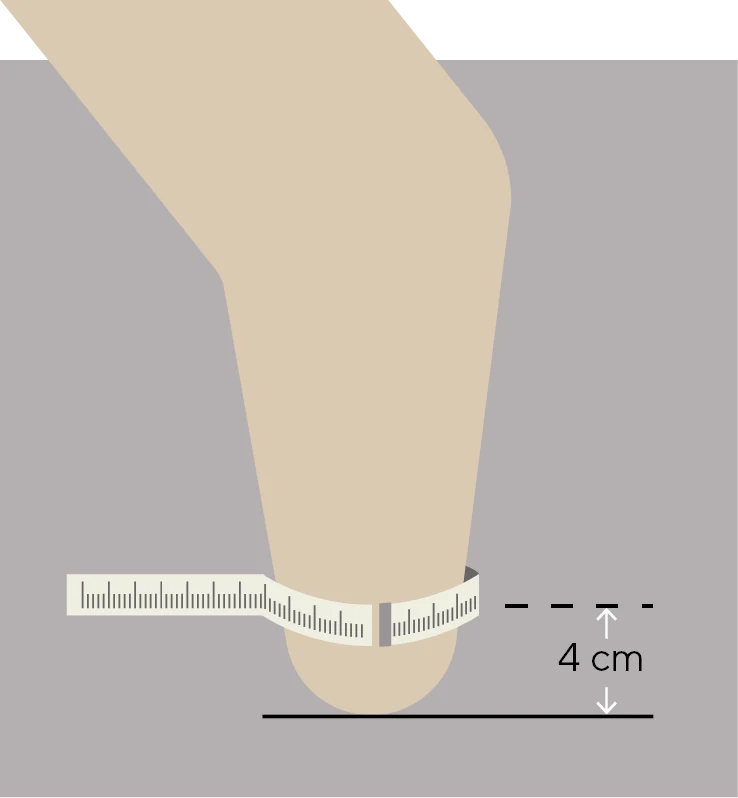

One measurement point: 4 cm from distal end.
| Size cm | Part no. |
|---|---|
| 16 | 212216 |
| 18 | 212218 |
| 20 | 212220 |
| 22 | 212222 |
| 23.5 | 212223 |
| 25 | 212225 |
| 26.5 | 212226 |
| 28 | 212228 |
| 30 | 212230 |
| 32 | 212232 |
| 34 | 212234 |
| 36 | 212236 |
Instructions
Selecting and using it.
How to select
Measure circumference 4 cm from the distal end of the residual limb. Choose the size closest to the measurement. If the measurement falls between two sizes, round down. Then assess fit and feel with the user.
How to use
Roll on from the distal end without trapping air, avoid stretching the textile over the brim, and clean daily with mild soap and water.
User manuals and technical documentation are available to clinics on request — ask us for the current version.
Evidence
What supports this.
LCA conducted following the principles of ISO 14040/44. Mechanical and long-term testing is ongoing.
Responsibility
Measure first. Claim second.
Product-level CO2e status: Size 26.5 = 2.43 kg CO2 eq. We publish the method together with the number, and we state what it does not cover.
