TF · brim
Nord° TF Brim 8.1 NFA-50
A prefabricated TF brim intended for a variety of socket designs and production techniques: flexibility for comfort, firmness for stability.
Overview
What this product is for.
Clinics producing transfemoral sockets who want a repeatable brim without giving up comfort at the proximal edge.
Flexible brim for TF socket designs
Benefits
Designed to.
- Combine flexibility for comfort with firmness for stability
- Fit a range of socket designs and production techniques
- Keep the proximal edge predictable between fittings
Why the details matter here
Brim circumference and shaping tolerance decide whether the material is working as intended or being overstretched into a different product.
Technical data
Specification.
- Nord° Formula
- NFA-50 HQ TPE
- Height
- ≈ 7.5 - 12.5 cm
- Colour
- Dark grey and black
- Weight
- Size 50 ≈ 285 gram
- Products
- Produced in Spain
- Nord° Formula production
- Produced in Sweden
- CO2 emission
- LCA in progress
Sizing
Size selection.
Highly recommended to keep an assortment of sizes in stock.
| Size cm | Part no. |
|---|---|
| 42 | 814242 |
| 44 | 814244 |
| 46 | 814246 |
| 48 | 814248 |
| 50 | 814250 |
| 52 | 814252 |
| 54 | 814254 |
| 56 | 814256 |
| 58 | 814258 |
| 60 | 814260 |
Instructions
Selecting and using it.
How to select

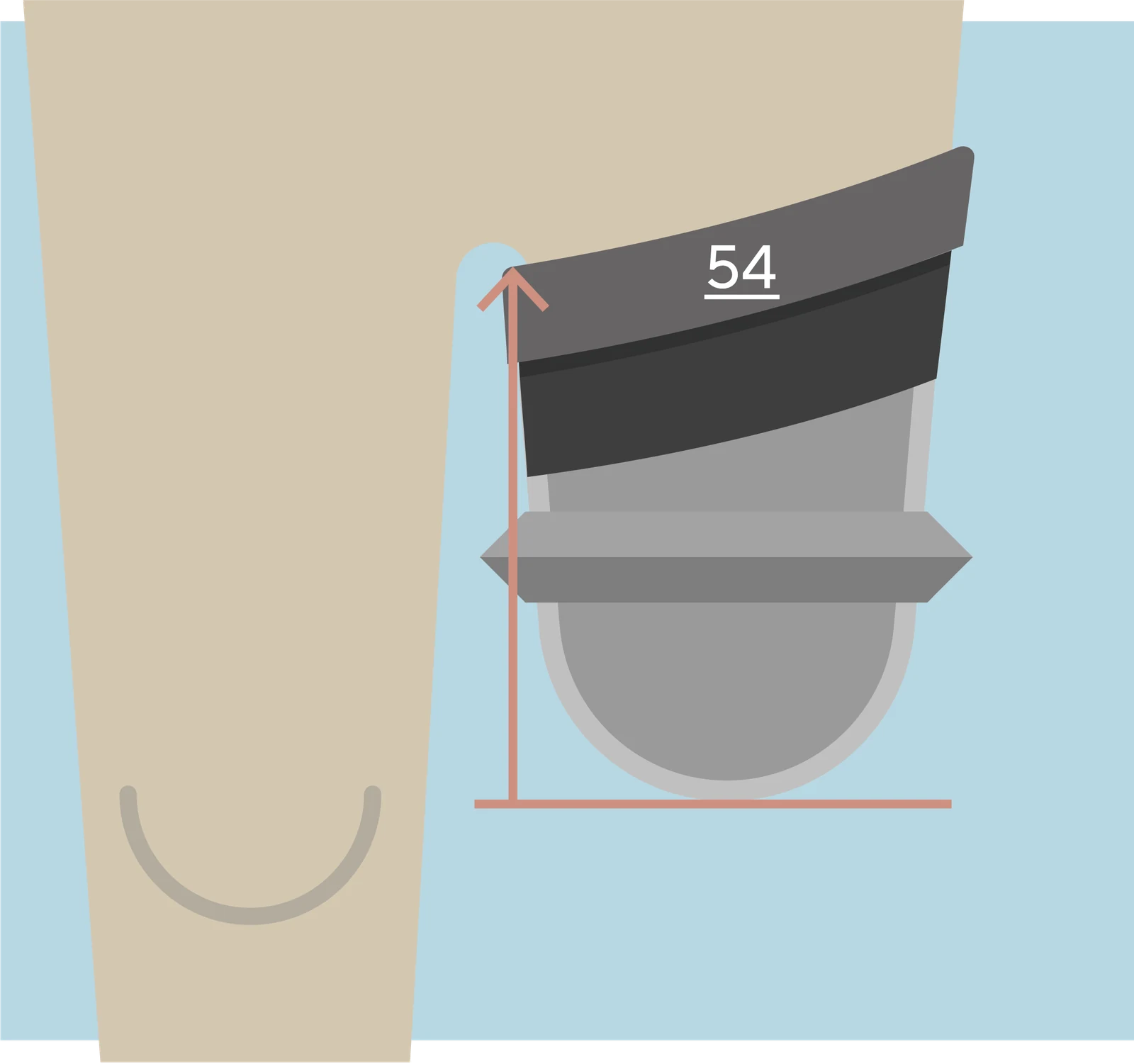

Apply a Nord° Brim on the limb over the liner to check fit and size. The rectified mould circumference should match the selected brim circumference and not exceed it by more than 2-3 cm. Larger differences risk overstretching, damage or rupture during shaping.
How to use
Shape according to the socket production technique in use, and check the proximal edge against the limb before lamination.
User manuals and technical documentation are available to clinics on request — ask us for the current version.
Responsibility
Measure first. Claim second.
Product-level CO2e status: LCA in progress. We publish the method together with the number, and we state what it does not cover.
